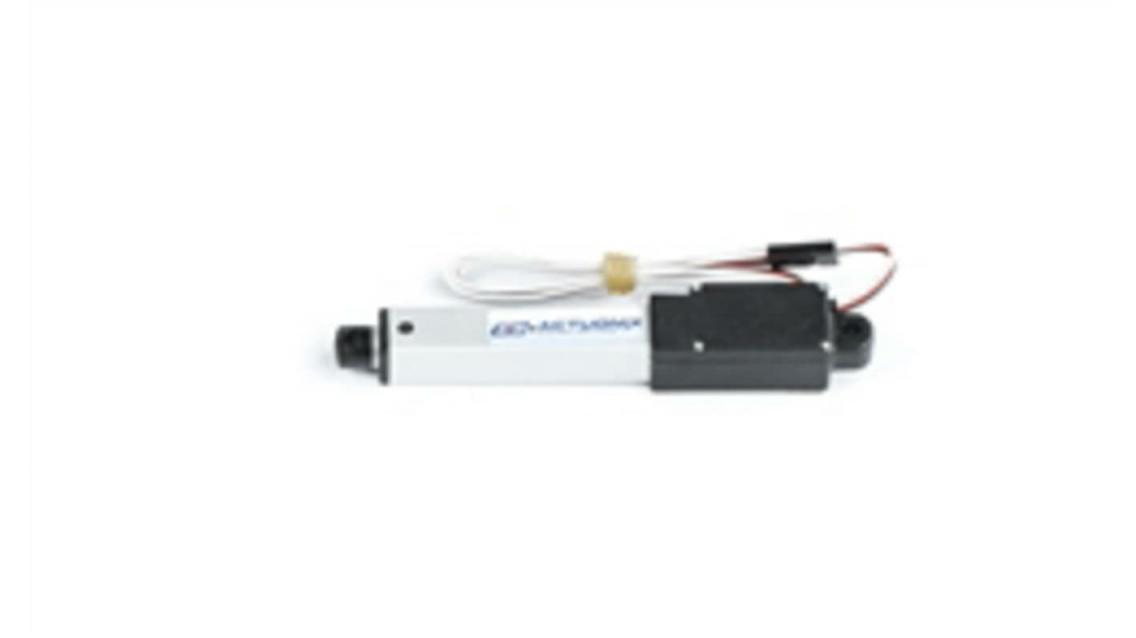

Actuonix Electric Actuators | Mechanical, Fluid Power & Tools Micro Linear Actuator,30Mm 6V Dc 25Mm/S

Description

Miniature Linear Motion Series · L12Actuonix Motion Devices unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These small linear actuators are a superior alternative to designing with awkward gears, motors, servos, and linkages. Actuonix’s L series of micro linear actuators combine the best features of our existing micro actuator families into a highly flexible, configurable, and compact platform with an optional sophisticated on-board microcontroller. The first member of the L series, the L12, is an axial design with a powerful drive-train and a rectangular cross section for increased rigidity. But by far the most attractive feature of this actuator is the broad spectrum of available configurations. The L12-R series of small linear servos operate as a direct replacement for standard rotary servos. They use the same standard 3 wire connector, ground power and control. Regardless of how you drive your servos, be it with an RC receiver, an Arduino board, or a VEX micro-controller, the L12-R servo will function in place of a regular rotary servo, but gives you the added benefit of linear motion.Our L12 line are constructed using an anodized aluminum shaft, metal gearbox, brass screw and steel ball bearings. These quality linear servos are not only built to last, but will look great on your models. Optional stroke lengths of 30mm, 50mm or 100mm3 gearing options for maximum forces between 22N (5lbs) and 80N (18lbs) and maximum speeds between 6.5mm/s and 25mm/sAvailable in 6V only to ensure compatibility with RC receiversPlug ‘n play with most RC receivers3 Stroke lengths3 Gearing optionsStall protection
