ALWAYSE Conveyor Components | Mechanical, Fluid Power & Tools Ball Transfer Unit With 22Mm Diameter Steel

Description

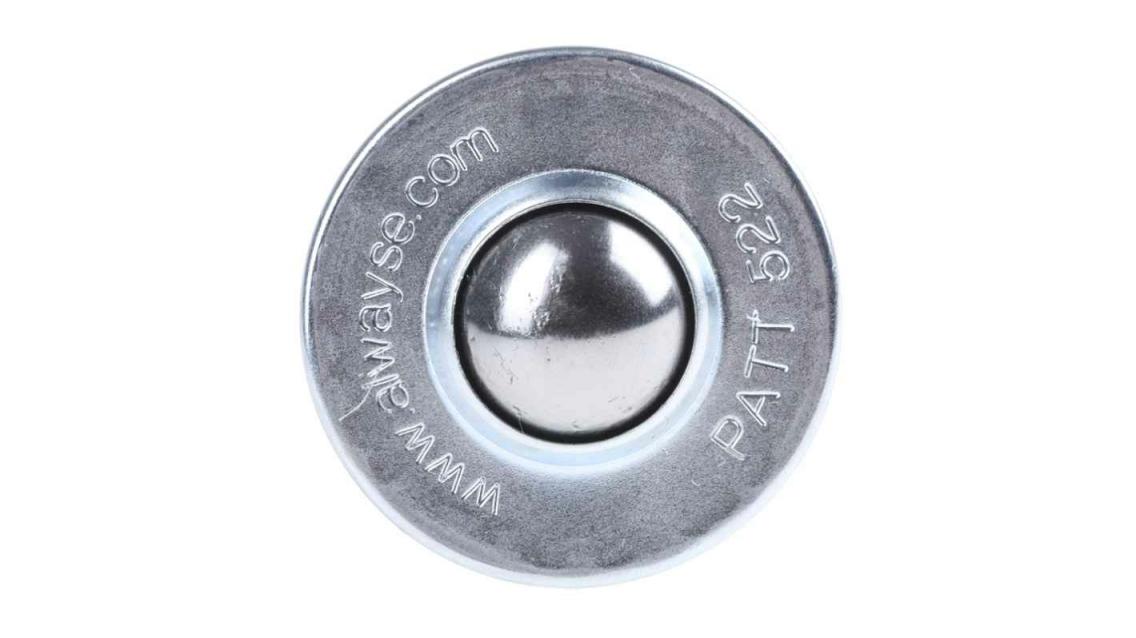

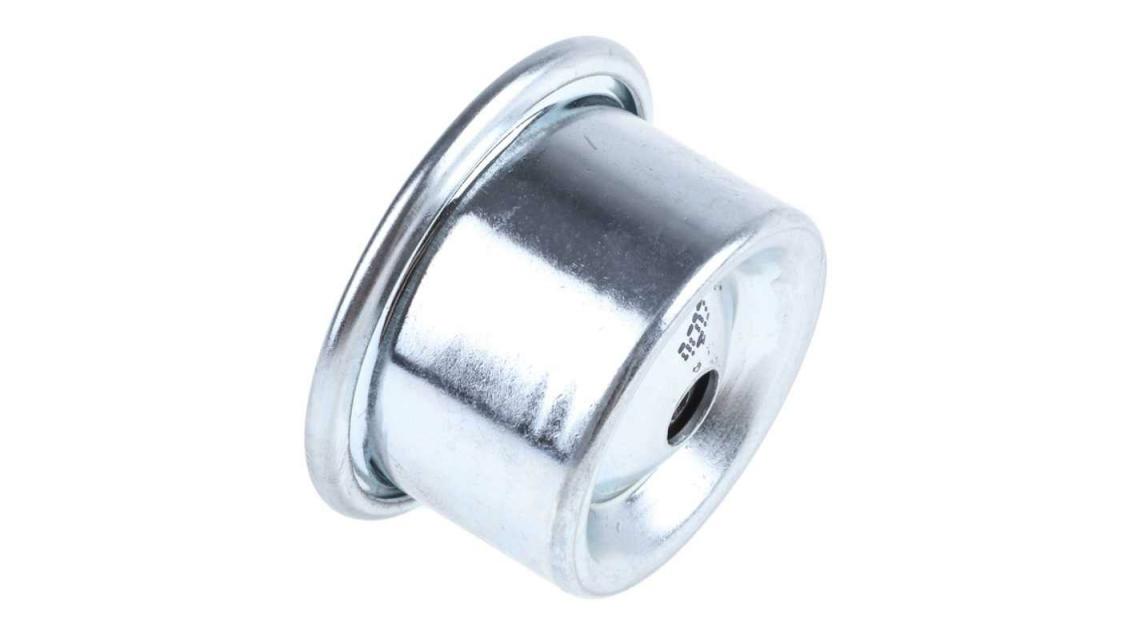

ALWAYSE Euro Ball Transfer UnitThe ALWAYSE circular flange mount euro ball transfer unit is a pre-lubricated device with a maximum load capacity is 160kg. This unit is used to move or transfer loads in all direction with a maximum speed of 1m/s. Fixing clipA fixing clip helps to fix either the top side of a ball deck or the underside. It is suitable for deck thicknesses up to 4mm. Features and BenefitsBall diameter is 22mmCase material is steelFelt or plastic seal (except 15mm)Flange diameter is 45mmFlange type fittingLoad ball material is steel Main bearing cup toughened steelSelf-cleaning holeOperating temperature ranging between -30C and 70C CertificationsANSI/ESD S20.20:2014BS EN 61340-5-1:2007
