ALWAYSE Conveyor Components | Mechanical, Fluid Power & Tools Ball Transfer Unit With 32Mm Diameter Steel

Description

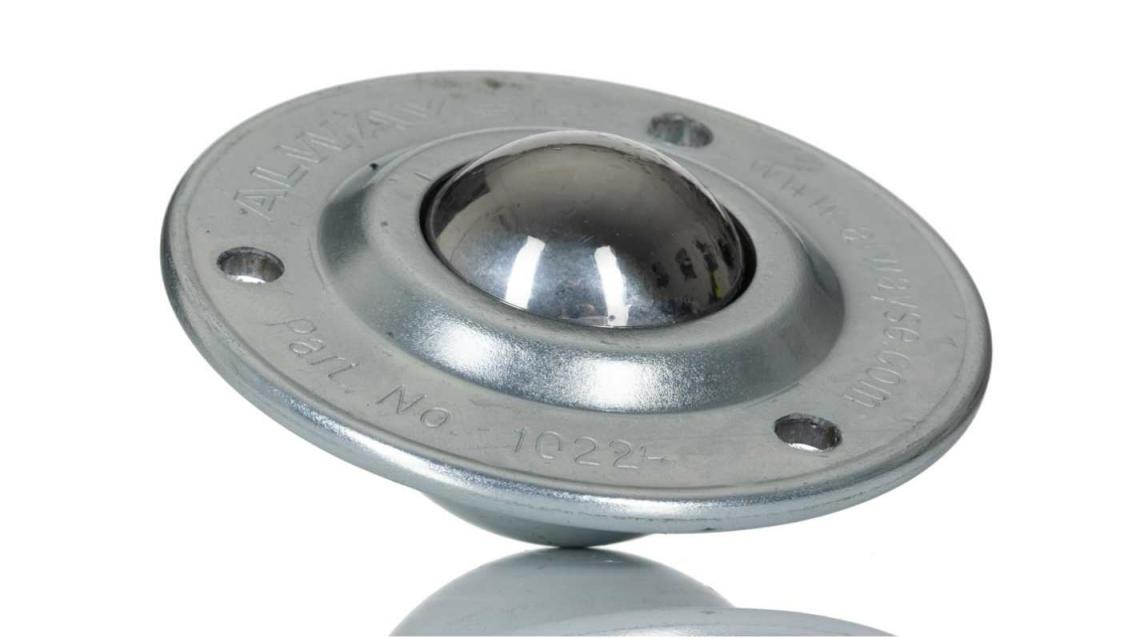

ALWAYSE Bolt Fixing Ball Transfer UnitThe ALWAYSE 3-hole flange mount bolt fixing ball transfer unit is a highly efficient device with a maximum load capacity is 125kg. This unit is used to move or transfer loads in all direction with a maximum speed of 1m/s. It is available in a wide choice of load capacities, sizes and fixings. Features and BenefitsBall diameter is 32mmFlange diameter is 73.7mmCase material is steelFlange type fitting3%-5% of load force required to start motion2% of load force required to maintain motionLoad ball material is steel with zinc plated Self-cleaning hole in base of bearing cupOperating temperature ranging between -30C and 70C CertificationsANSI/ESD S20.20:2014BS EN 61340-5-1:2007
