Description

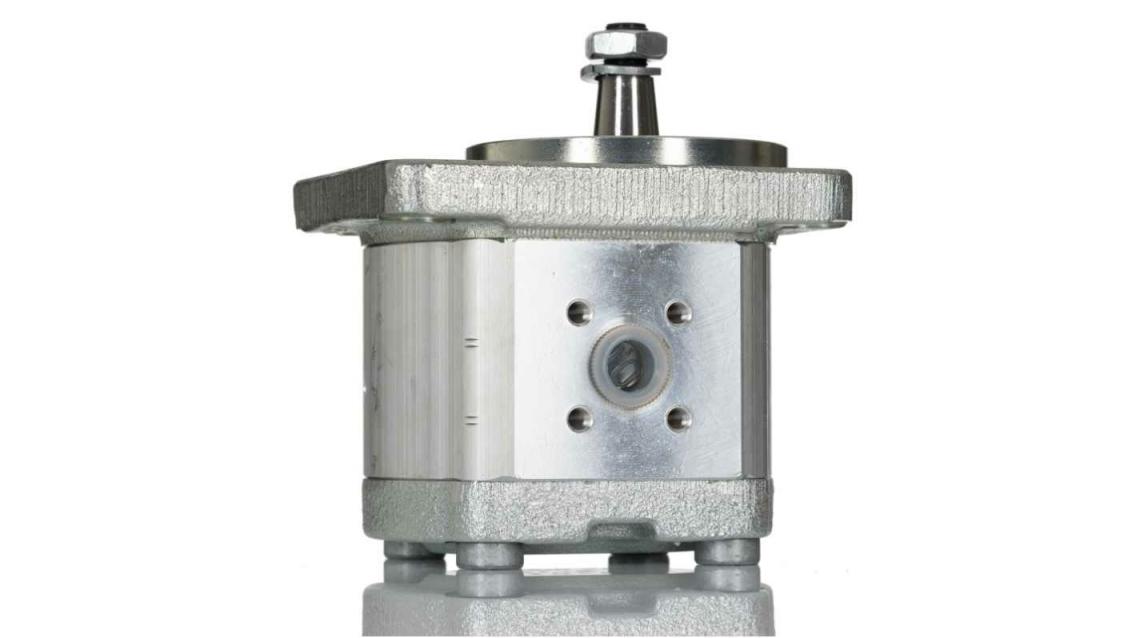

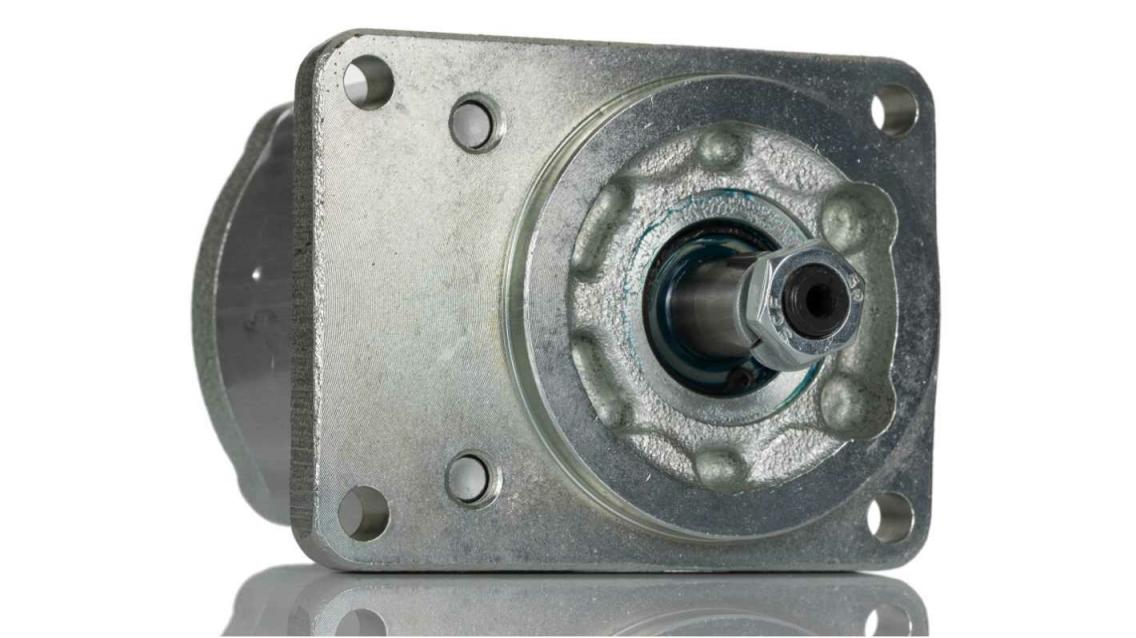

Self Aspirating External Gear Pump, 1:5 Tapered ShaftPlain bearings cater for high load applicationsTo assist with installation, a range of flanged fittings for pipe connection is available separately, in right angle pattern Each fitting is supplied complete with fixing screws, 0-ring, cutting ring and retaining nut NoteMaximum permissible degree of contamination of pressure fluid to NAS 1638, Class10. To achieve this, we recommend a filter with a minimum retention rate of B20 ≥100. To ensure a long service life; filtration to NAS 1638, Class 9 is recommended – this is achievable with a filter retention rate of B10≥100. Supplied withInstruction leaflet. Gear Pumps Direction of rotation is clockwise. Nominal displacement is between 4cm³/rev and 22.4cm³/rev for maximum working pressures. Seal material is NBR (nitrile rubber). Fluid working temperature range is -15C to +80C. Recommended fluid is mineral oil and recommended viscosity is 10mm²/s to 300mm²/s.
