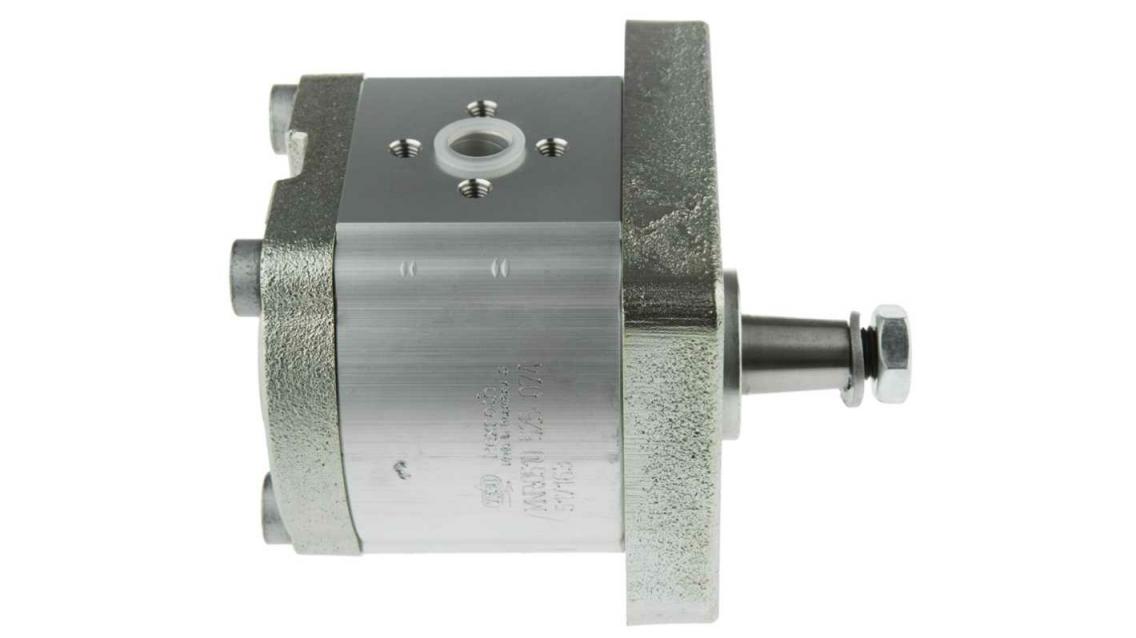

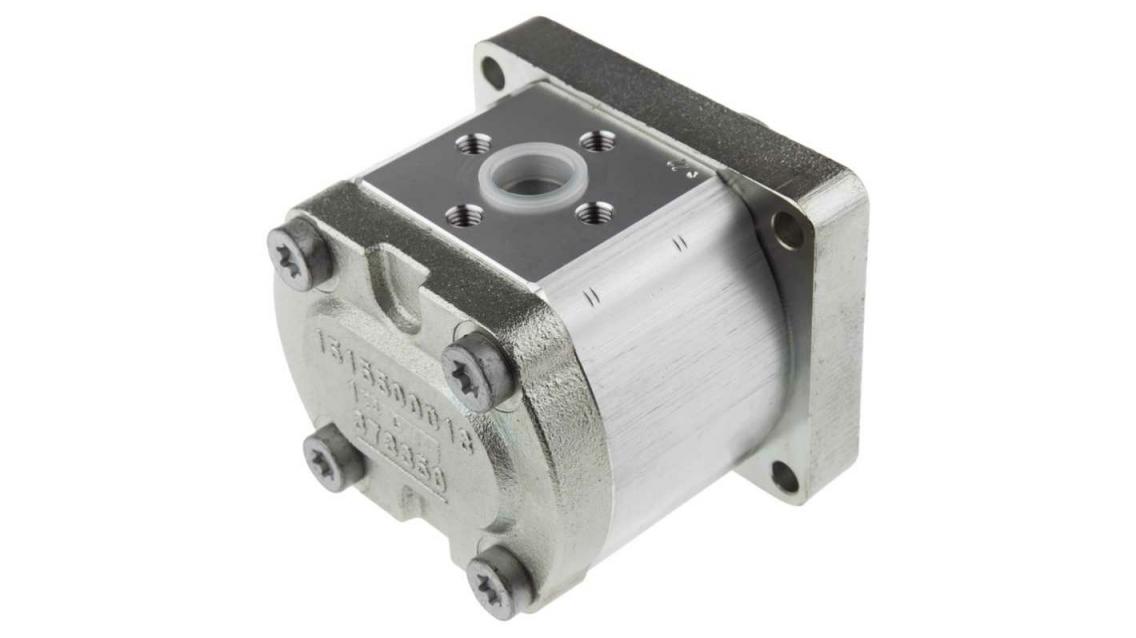

Bosch Rexroth Hydraulic Cylinders, Pumps & Power Units | Mechanical, Fluid Power & Tools Hydraulic Gear Pump 0510525074,11Cm³

Description

Self Aspirating External Gear Pump, 1:8 Tapered ShaftNew principle for the housing sealing, giving long housing service lifeLong service life for seals, even at maximum temperaturePlain bearing for high loadsMonoblock bearingSimple and robust designNew principle of hydrostatic side clearance compensation NoteMaximum permissible degree of contamination of pressure fluid to NAS 1638, Class10. To achieve this, we recommend a filter with a minimum retention rate of B20 ≥100. To ensure a long service life; filtration to NAS 1638, Class 9 is recommended – this is achievable with a filter retention rate of B10≥100. Gear Pumps Direction of rotation is clockwise. Nominal displacement is between 4cm³/rev and 22.4cm³/rev for maximum working pressures. Seal material is NBR (nitrile rubber). Fluid working temperature range is -15C to +80C. Recommended fluid is mineral oil and recommended viscosity is 10mm²/s to 300mm²/s.
