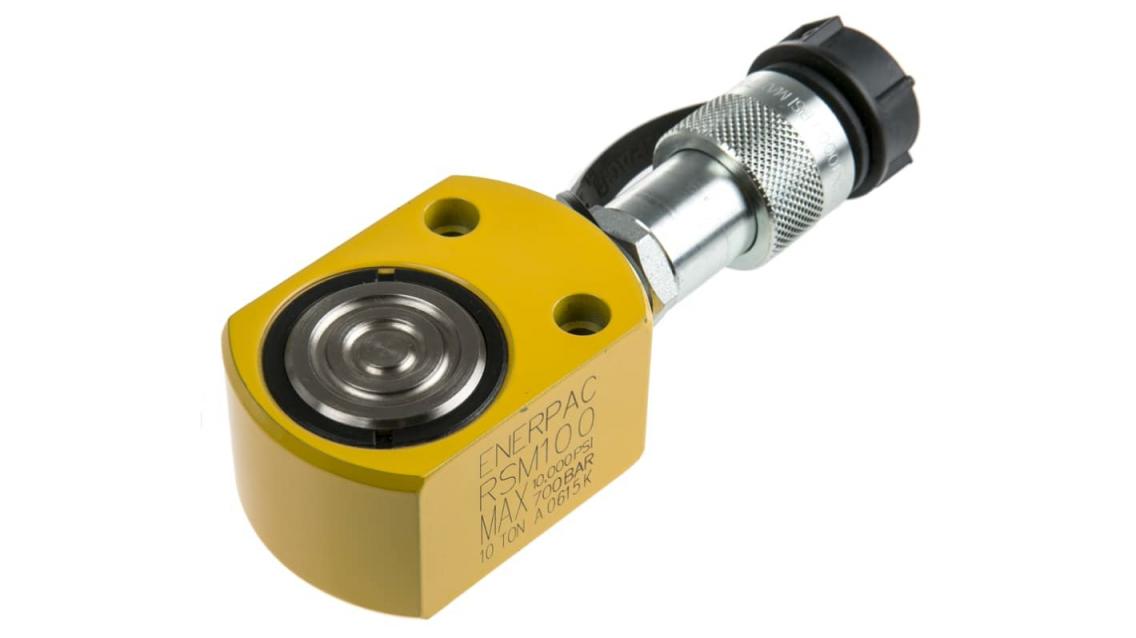

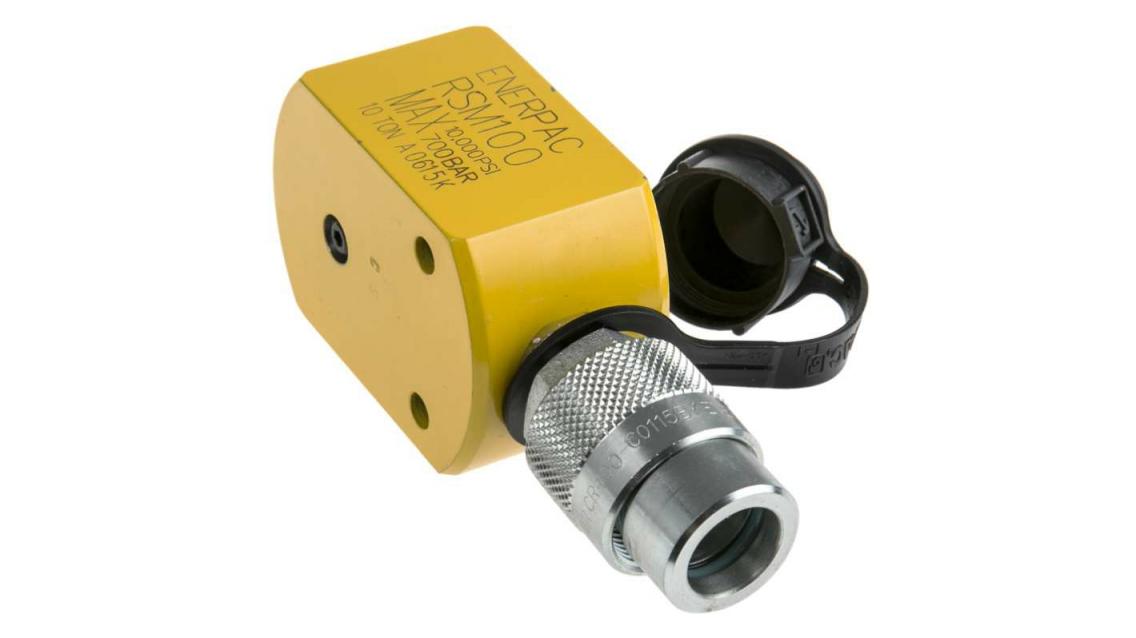

Enerpac Hydraulic Cylinders, Pumps & Power Units | Mechanical, Fluid Power & Tools Single,Portable Low Height Hydraulic Cylinder Rsm100 10T 12Mm Stroke

Description

Flat – Low Height CyllindersCompact, flat profile, RSM-Flat Jac spring return cylinders designed for use in extremely confined working spaces where most other cylinders will not fitMounting holes permit easy fixingGrooved plunger end requires no saddleReplacement seal kits are available NoteAll cylinder capacities are specified in US ton (short ton). 1 US ton = 907.2Kg Low Profile Cylinders Industrial standard high quality single acting/spring return cylinders manufactured from durable high strength alloy steel with a Baked Enamel finish. The plunger is chrome plated to resist wear and rust. The saddles are hardened which prevents the piston from jamming in the top bearing and heavy-duty return springs enable fast piston retraction. Port connections on all cylinders are 3/8-18 NPT and are fitted with a female high flow coupler. Enerpac cylinders are designed to ANSI B30.1 and have a maximum operating pressure of 700 bar.
