Huco Brakes & Clutches | Mechanical, Fluid Power & Tools Friction Clutch,8Mm Bore 132Ncm

Description

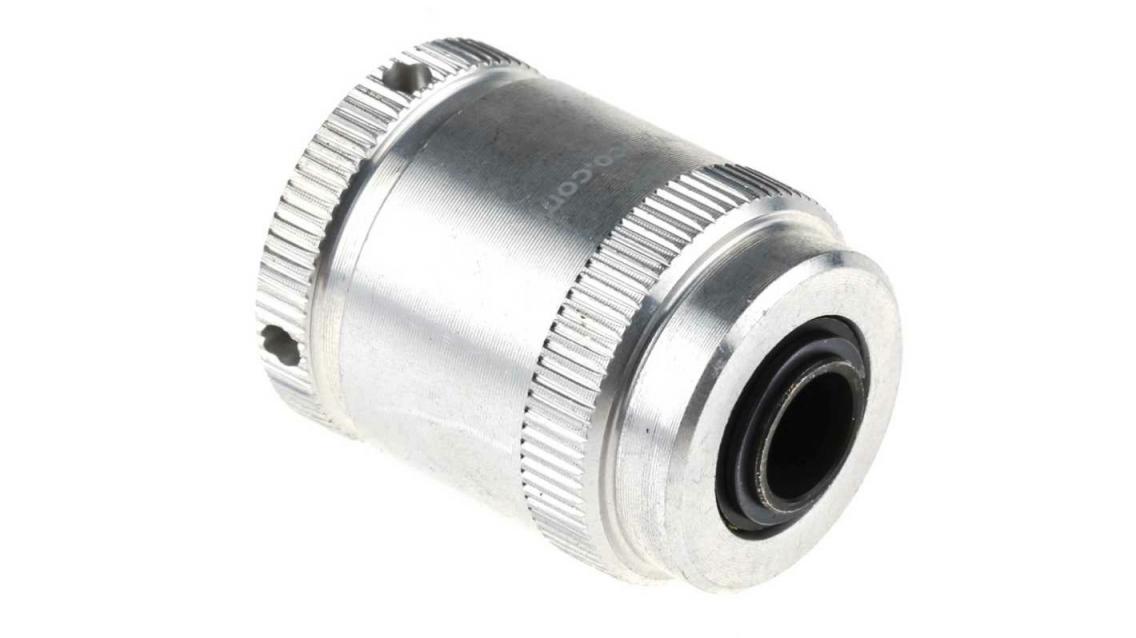

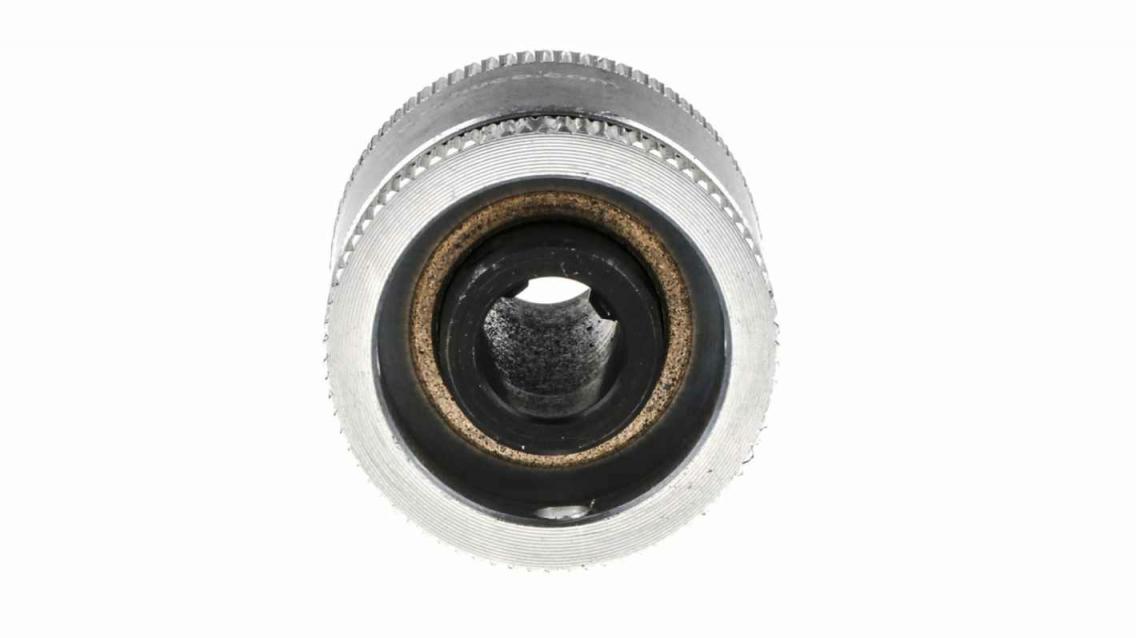

Huco Friction ClutchThe Huco friction clutch is designed with an adjustable drag or slip torque of rating 132Ncm. Controlled slip takes place between the hub and housing whenever the load exceeds the set torque. It has a simple construction and the pressure is brought on to the plates and friction rings by an adjuster acting through a spring and pressure plate. The load can either be connected to the steel inner hub or the aluminium alloy housing. Features and BenefitsBody diameter is 25.8mmBore is 8mmCompact proportionsFour interface stylesSet screw or clamp connectionCan be used as a torque limiter, tensioning and overrun device ApplicationsTorque limitersTensioning devicesOverrun devices CertificationsANSI/ESD S20.20:2014BS EN 61340-5-1:2007
