Hydralectric Valves & Taps | Mechanical, Fluid Power & Tools Solenoid Valve 72004,2 Port(S) Nc 240 V Ac 1/2In

Description

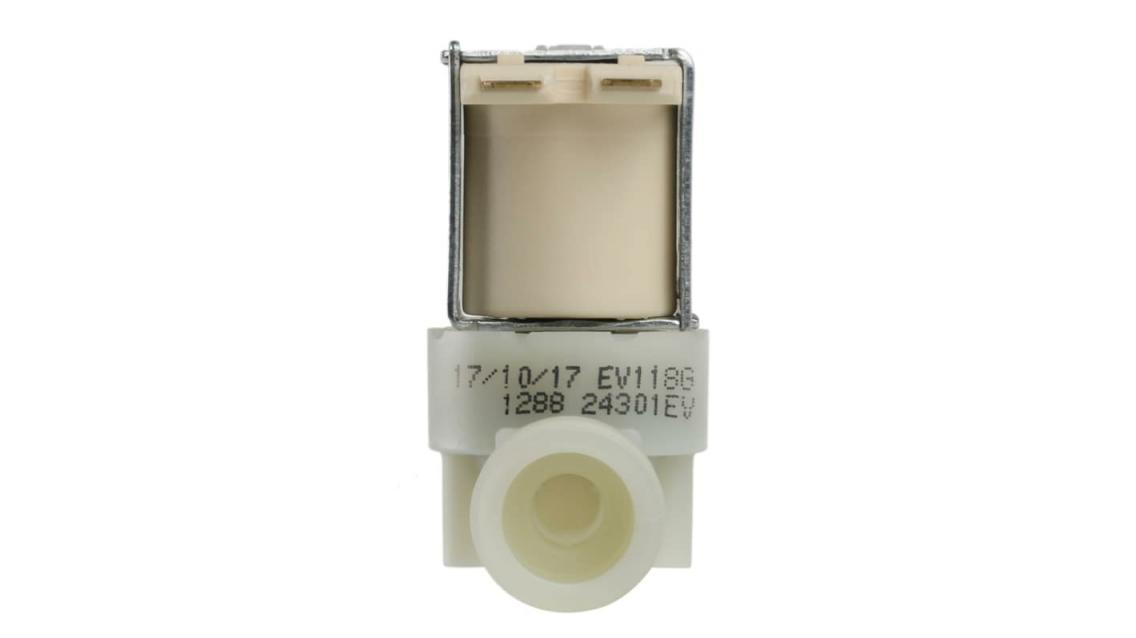

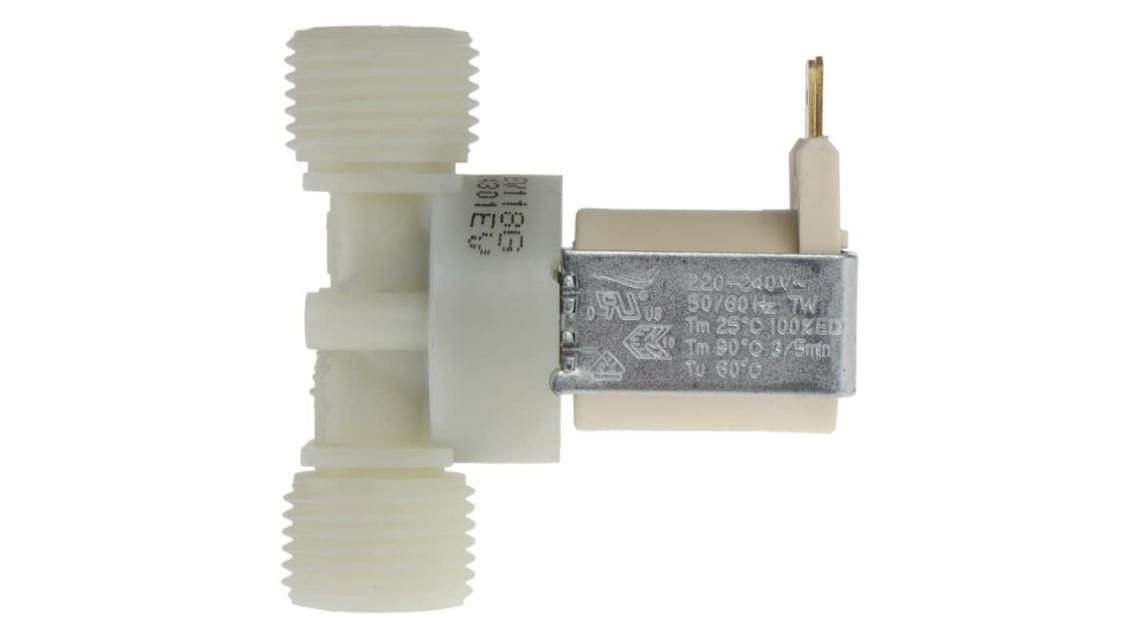

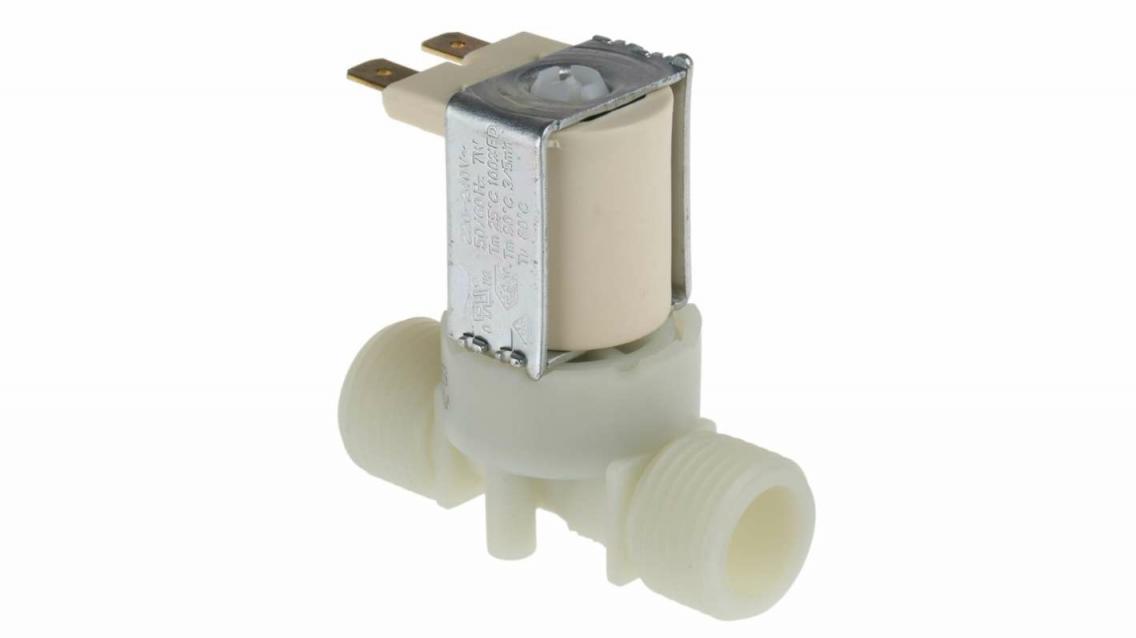

Hydralectric Solenoid ValveThe Hydralectric 1/2in BSP male solenoid valve has a supply voltage of 240VAC. This 2-port valve is continuously rated when the fluid temperature is below 25C, the ambient temperature is below 60C and the flow rate is above 5L/min. It requires a duty cycle of 40% for fluid temperatures up to 90C. It is ideal for controlling water pressure 0.2bar to 10 bar. Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the operation of the valve when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required. Features and BenefitsFlow factor (Kv) is 17L/minMaximum working pressure is 10barPower consumption is 4WSpade coil terminals of 1/4inSolenoid coil is wound so either voltage can be passed through it ApplicationsHand washers Refrigeration equipment and automatic tap systems CertificationsEN 60730-2-8 UL429 listedBEAB approvedNSF approvedWRAC approved
