RS PRO Hydraulic Fluids & Filtration | Mechanical, Fluid Power & Tools 12 Bar 3/4In Hydraulic Spin-On Filter Can,65L/Min Max 10Μm Filtration Size

Description

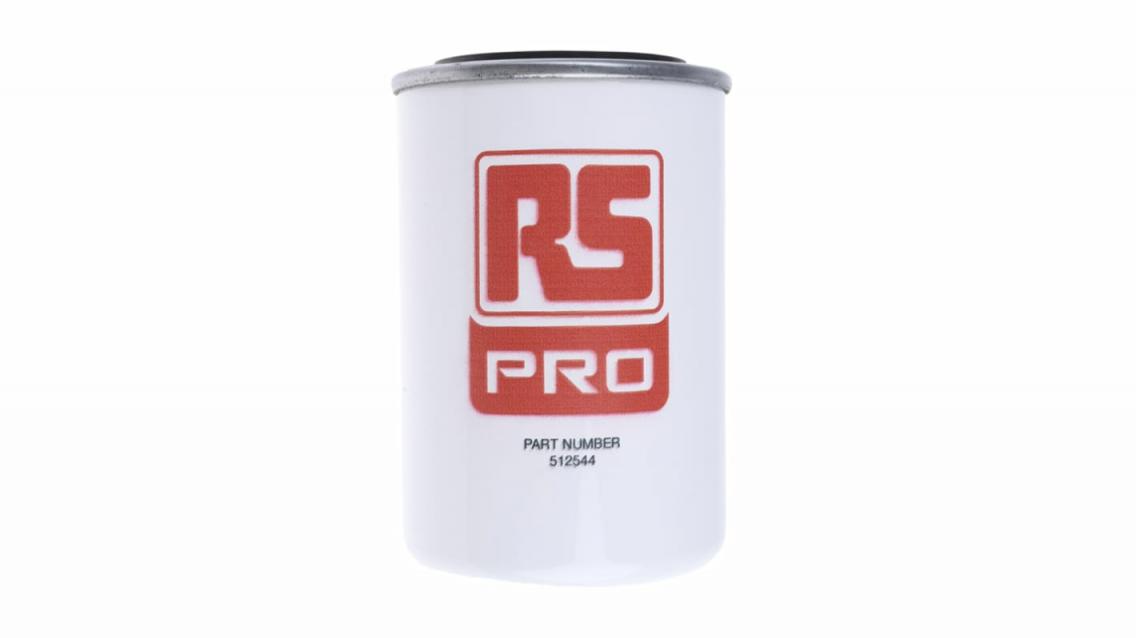

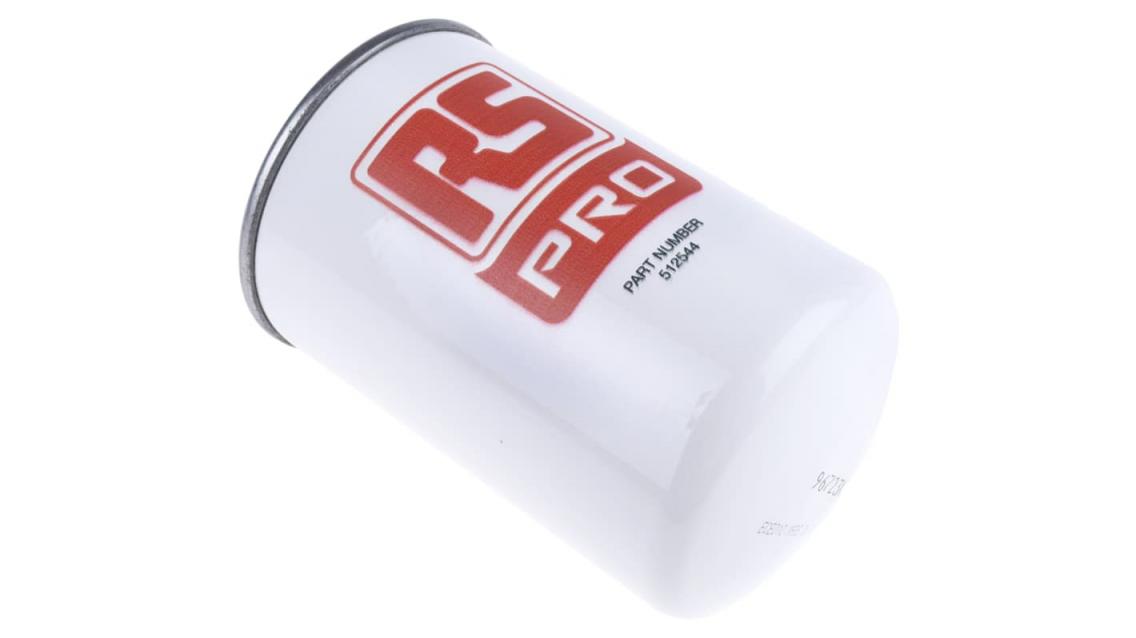

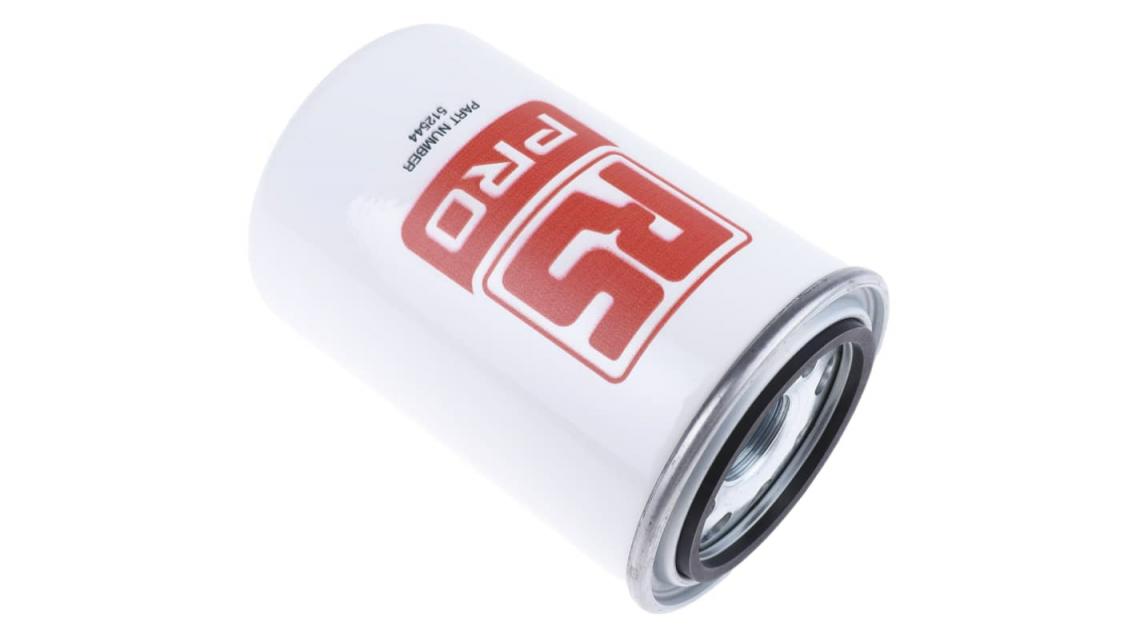

RS PRO Hydraulic Spin-On Filter Can, 10 μm, 3/4 in, 65 L/min. Max. Flow RateNeed to protect a pump, valve or circuit from contamination in a hydraulic system This spin-on filter can from RS PRO can be mounted inline using the threaded mounting holes on top of the head, to keep the system clean and avoid excessive wear. The filter is fitted with a multi-function valve that has three functions. The first is a forward bypass valve that allows unfiltered oil to bypass the contaminated element once the opening pressure has been reached. Second is a reverse flow valve that allows reverse flow through the filter head without back-flushing the element. Lastly, a non-return valve prevents the delivery line from draining during element change. The filter head is constructed from spheroidal graphite cast iron while the filter bowl is made from cold-drawn steel, making it a tough component that assures you a long service life in a range of industrial environments. Low-pressure filter cans of this kind are typically used in agricultural applications and mining equipment. Features and Benefits• G 3/4 connection thread• Filtration size of 10 μm• Maximum flow rate of 65 L/min• Maximum operating pressure of 12 bar• Operating temperature of -32C to +100C• Nitrile rubber seal• Thread size of 3/4 in• G thread standard
