RS PRO Pins, Keys & Retaining Clips | Mechanical, Fluid Power & Tools 450 Piece E Type,External Internal Steel Circlip Kit For 13 → 20 Mm 14 25 Shaft Diameters

Description

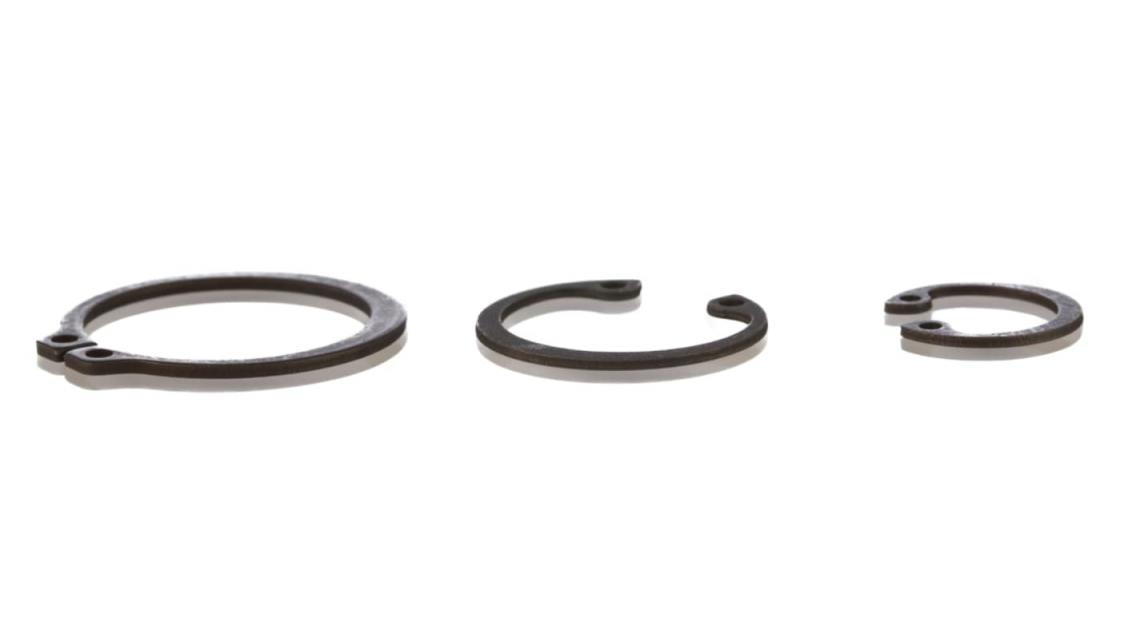

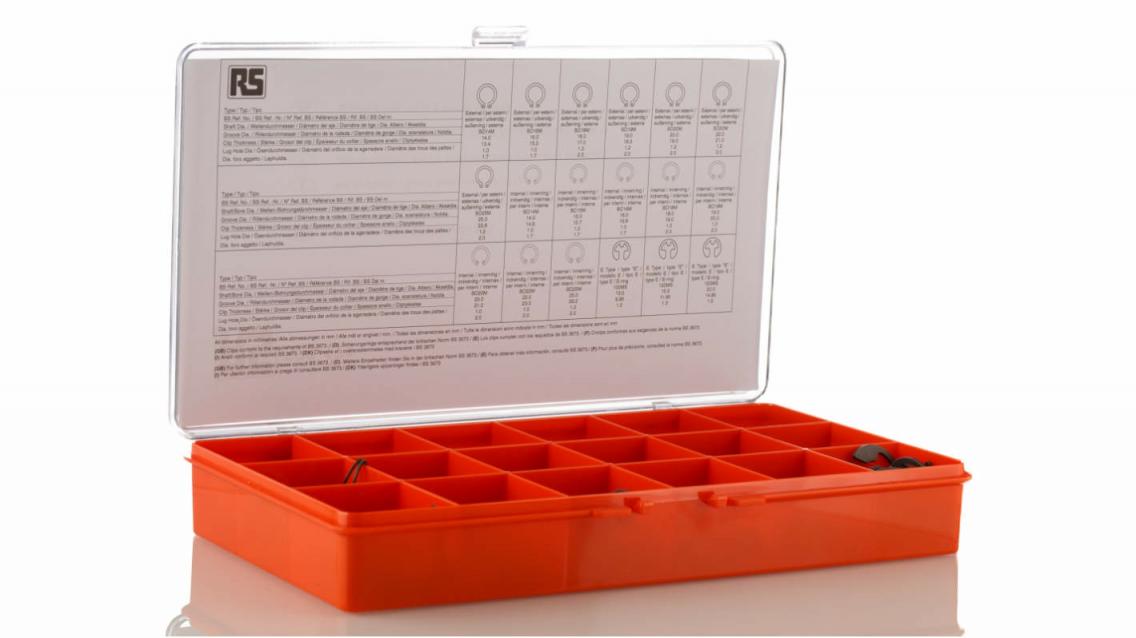

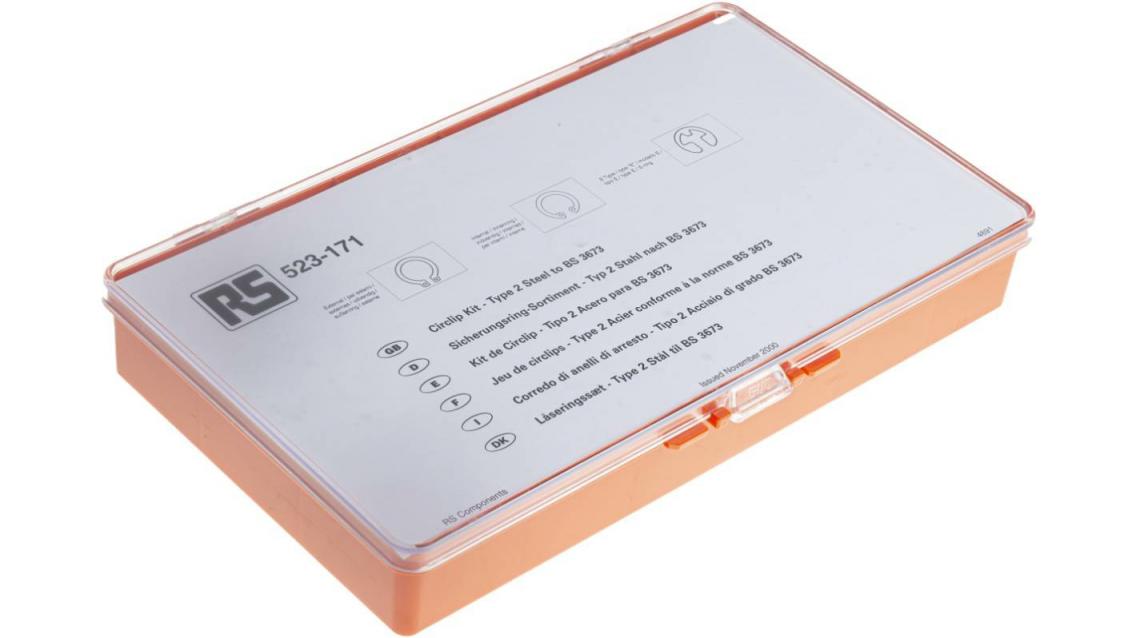

RS PRO Black Steel CirclipsBlack Phosphated Steel clips conform to the requirements of BS3673Available in packs of individual sizes of External and ‘E’ typesSuitable RS circlip pliers available NoteTwo circlip kits are available separatelyKit 1 contains small sized clips (523-165)Kit 2 contains large sized clips in both cases (523-171)Each kit is contained in a moulded compartment storage box, complete with a layout sheet giving dimensional information RS PRO 450 Piece Steel Circlip Kit RS PRO circlip kit which contains a range of circlips including E Type circlips, External circlips and Internal circlips.Circlips (also known as retaining rings) are types of fastener which look like flexible, open-ended rings. Circlips are typically made from stainless steel and similar metals. Alternative names for circlips include retaining rings, retaining clips, C-type, Jesus clips, snap rings, and E-type.Circlips come in two main types – internal and external. An external circlip is designed to fit around a bore, whereas internal circlips are made to fit inside a cylindrical shaft or housing.It is always important to choose the right circlip sizes for the job at hand. The retaining ring must be suitable to fit inside the shaft where it will be installed (internal circlips) or should fit snugly around the outside of the housing (external circlips). If the retaining ring is incorrectly sized, the installation will be significantly more challenging, and it may lead to further problems in the future if left unchecked. Features:For 13 → 20 mm, 14 → 25 mm shaft diameterFits 9.95 → 14.95 mm, 13.4 → 23.9 mm, 14.6 → 26.2 mm groove diameterKit Contents:External:-14 mm x 2516 mm x 2518 mm x 2519 mm x 2520 mm x 2522 mm x 2525 mm x Internal:-14 mm x 2515 mm x 2516 mm x 2518 mm x 2519 mm x 2520 mm x 2522 mm x 2525 mm x 25’E’ type:-11 mm x 2513 mm x 2516 mm x 25 Typical Applications:A circlip set will typically feature a selection of circlips. Sets usually include a variety of common sized retaining rings, alongside a range of internal, external, and E-clips to provide greater flexibility to the user.Circlip kits are ideal for professionals regularly working with circlips of different types and sizes, a circlip kit is particularly handy if you are unsure what size circlip you will need for future applications. FAQsHow Do You Measure External Circlip SizeWhen measuring the size of an external circlip, you should measure the nominal size of the groove diameter. Do not measure the shaft diameter as this will result in an inaccurate measurement when comparing external circlip sizes.How Do You Measure Internal Circlip SizeIn order to accurately measure the size of an internal circlip, you will need to measure the nominal size of the groove diameter. Avoid measuring the bore diameter as this will not provide the correct size.Why RS PRORS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
