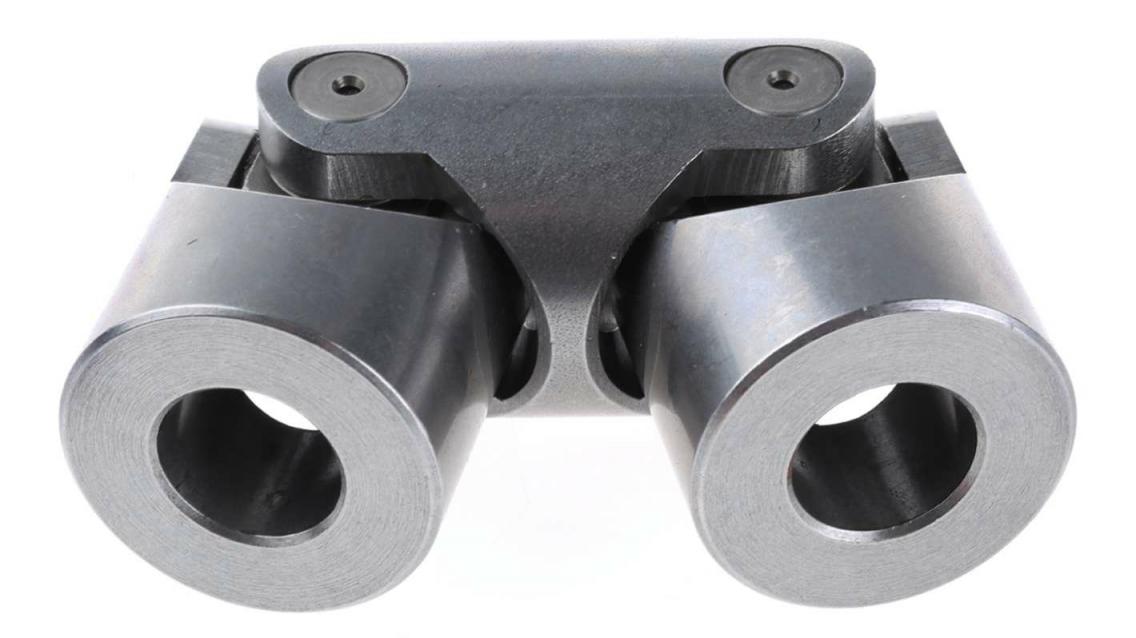

RS PRO Power Transmission Couplings | Mechanical, Fluid Power & Tools Universal Joint,Double Plain Bore 20Mm 128Mm Length

Description

RS PRO Universal Joint, Double, Plain BearingRevolutionise your machinery connections with exceptional universal joints from the renowned RS PRO range. Perfectly engineered for connecting rotating machinery like conveyors to a prime mover, these versatile joints are also ideal for various vehicles when connecting rods or shafts at an angle.Crafted from high-quality steel, these plain-bearing universal couplings are designed to excel in applications with an operating angle of up to 90 and a maximum speed of 1000 rpm. They feature a bored hub design with bore sizes ranging from 6 mm to 22 mm, offering you the flexibility you need for your projects.For optimal performance and extended lifespan, we recommend using a protective gaiter and proper lubrication with these plain bearings. Whether working with belt conveyors, vehicle prop shafts, or centrifugal pumps, these universal joints are your go-to solution for smooth and efficient operation. Features and Benefits Universal joint Plain double-joint type Made from steel Bored hub type Maximum speed of 1000 rpm Hub outer diameter 16 mm to 45 mm Bore size of 6 mm to 22 mm Peak torque of 600 Nm Maximum working angle of 90 Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 RoHS (Restriction of Hazardous Substances) compliant Variants Available Separately Bore 6 mm, RS stock no: 790-6740 Bore 8 mm, RS stock no: 790-6744 Bore 10 mm, RS stock no: 790-6753 Bore 12mm, RS stock no: 790-6756 Bore 14 mm, RS stock no: 790-6750 Bore 16 mm, RS stock no: 790-6769 Bore 18 mm, RS stock no: 790-6762 Bore 20 mm, RS stock no: 790-6766 Bore 22 mm, RS stock no: 790-6775 Applications Industrial Machinery Driveshafts Robotics Conveyors Aerospace Agricultural Equipment Medical Equipment
